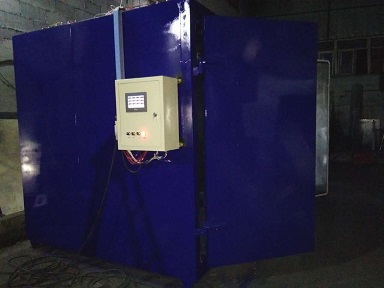

hot wind circulation oven for epoxy resin insulators

1. panel

                                                                                                              viewing screen

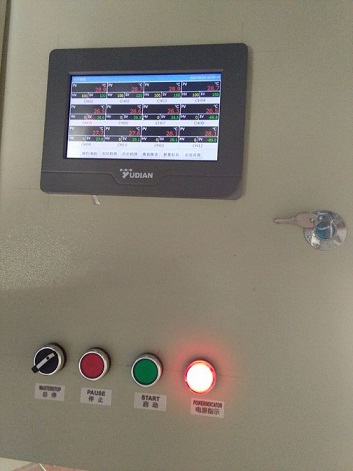

      Master stop    pause     start    power indicator   alarm time

Master stop:Open to stop the general power supply of control,Open power supply power indicator light.

Pause:Stop line start power supply,Oven stop working.

Start:Start the line power supply,The viewing screen open.

Alarm time:After baking oven to the set temperature, Though the constant temperature time the siren begin to alarm.

Heating pause:Stop heating,Close the alarm time.

2.Open the stop switch,The power indicator light.

3.Press the start button, Viewing screen light.(If press the start button ,Distribution in the electrical appliances can’t start,Because of this equipment has a fixed phase sequence, Please change the power supply any two root of fire location ,Phase sequence protector indicator light,Electrical appliances can be run in the box)

4.Key click viewing screen temperature (temperature setting )show the temperature page.The first section is the oven temperature zone temperature set before. The second section is the oven temperature zone heating chamber protecting setting(The first section is generally high than the oven temperature of 50-70DEG C high temperature before). The three section is the oven temperature zone temperature set after.The four section is the oven temperature zone heating chamber protecting setting(The first section is generally high than the oven temperature of 50-70DEG C high temperature after)

5:Temperature setting example: Point set at the bottom of the first section of the setting temperature display,On the right can be written to Arabic numerals,Select the required number of setting,Press enter key on the right to confirm,Press ESC key on the right to return, The first section is set up,And so on,Set up the four section of the temperature.

6:Press return home key to return,Press set the time key to set time.

7:Point to set the time required to set up the constant temperature time of the product,On the right can be written to Arabic numerals,Select the required number of setting,Press enter key on the right to confirm,Press ESC key on the right to return,The hours set up,And so on,Letting hour minute second(minutes,seconds to 59)set the time to set the display windows display.

8.Working time display windows shows the setting temperature,Constant temperature time,After reach the setting constant temperature ,Constant temperature the siren begin to alarm.Alarm need to manually shut down.Turn off the heating switch.

Attention: 1.Open the viewing screen ,Only when the wind turbine works show,Then open the heating switch.

2.The power supply voltage of the device is 415V/230V(three-phase four  wire)power is 36KW.
